linux对不同的磁盘设备的设备文件命名如下：
IDE： /dev/hd[a-z]
对IDE分区的命名为/dev/hda1 /dev/hda2 …..
SCSI, SATA, SAS, USB： /dev/sd[a-z]
对分区的命令为/dev/sda1 /dev/sda2 …….
主分区最多可有4个。若分区大于4个，可使用3个主分区加一个扩展分区的方式，再通过在扩展分区上划分多个逻辑分区。
常见的文件格式有ext2、ext3、ext4、vfat(兼容windows的fat32)、xfs、btrfs、jfs等。
查看linux的磁盘分区可使用fdis（分区管理命令）
fdisk /dev/sda (非IDE硬盘)
m：获取帮助
p：显示分区信息
q：不保存退出
n：新建分区
d：删除分区
q：保存退出
l：显示分区类型的ID
t：改变分区类型的ID
[root@localhost ~]# fdisk /dev/sda
Welcome to fdisk (util-linux 2.23.2).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Command (m for help): p
Disk /dev/sda: 16.1 GB, 16106127360 bytes, 31457280 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000a72d4
Device Boot Start End Blocks Id System
/dev/sda1 * 2048 1026047 512000 83 Linux
/dev/sda2 1026048 20971519 9972736 8e Linux LVM
说明：
1、Disk /dev/sda: 16.1 GB 硬盘的大小是16GB，16106127360 个字节，31457280个扇区。
2、下半部信息说明
Device 是分区名称
Boot 是否是启动分区
Start 起始的扇区
End 结束的扇区 /dev/sda2结束的扇区是20971519，而硬盘总共有31457280，说明还有硬盘空间没有被用于创建分区。
Blocks以1KB为单位，显示分区的空间；
ld 为分区类型的ID号
System 为分区类型

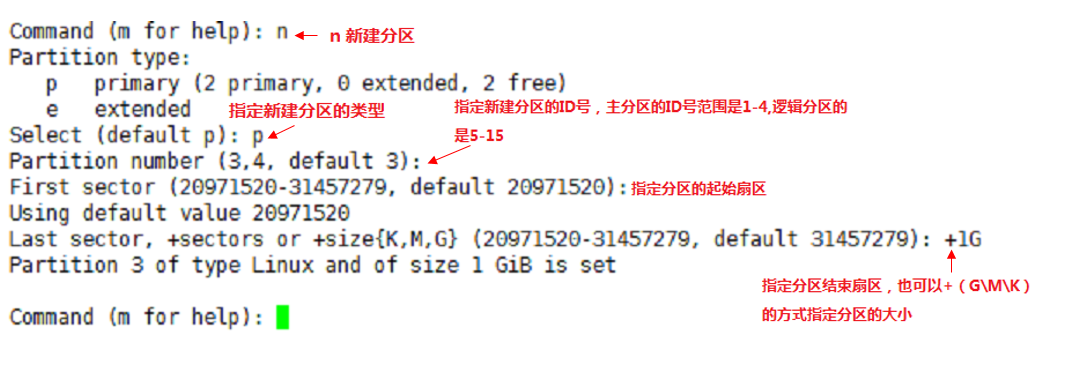

创建分区：（下图中指定起始扇区与/dev/sda2的结束扇区能对接上）
创建逻辑分区
Command (m for help): n
Partition type:
p primary (3 primary, 0 extended, 1 free)
e extended
Select (default e): e 指定新建扩展分区
Selected partition 4
First sector (23068672-31457279, default 23068672):
Using default value 23068672
Last sector, +sectors or +size{K,M,G} (23068672-31457279, default 31457279): +1G 指定扩展分区的大小
Partition 4 of type Extended and of size 1 GiB is set
Command (m for help): n
All primary partitions are in use
Adding logical partition 5 ID号1-4已经用完，系统直接使用逻辑分区ID的范围5-15
First sector (23070720-25165823, default 23070720):
Using default value 23070720
Last sector, +sectors or +size{K,M,G} (23070720-25165823, default 25165823): 24000000这里的结束扇区25165823-23070720=2095103*512/1024/1024=1022.99MB，即1GB，与指定的扩展分区大小相同
Partition 5 of type Linux and of size 453.8 MiB is set新建逻辑分区的大小是453.8MB
Command (m for help): n
All primary partitions are in use
Adding logical partition 6
First sector (24002049-25165823, default 24002560):
Using default value 24002560
Last sector, +sectors or +size{K,M,G} (24002560-25165823, default 25165823): 这里的结束扇区ID与上述的相同
Using default value 25165823
Partition 6 of type Linux and of size 568 MiB is set
Command (m for help): p
Disk /dev/sda: 16.1 GB, 16106127360 bytes, 31457280 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000a72d4
Device Boot Start End Blocks Id System
/dev/sda1 * 2048 1026047 512000 83 Linux
/dev/sda2 1026048 20971519 9972736 8e Linux LVM
/dev/sda3 20971520 23068671 1048576 83 Linux
/dev/sda4 23068672 25165823 1048576 5 Extended
/dev/sda5 23070720 24000000 464640+ 83 Linux
/dev/sda6 24002560 25165823 581632 83 Linux 新建的逻辑分区
Command (m for help): w保存退出
检查linux是否已经识别出新的分区查看/rroc/paritions文件
[root@localhost ~]# cat /proc/partitions
major minor #blocks name
8 0 15728640 sda
8 1 512000 sda1
8 2 9972736 sda2 新创建的/dev/sda3-6没有还没有识别出来
11 0 4228096 sr0
253 0 8880128 dm-0
253 1 1048576 dm-1
强制让内核更新分区
[root@localhost ~]# partx -u /dev/sda
[root@localhost ~]# cat /proc/partitions
major minor #blocks name
8 0 15728640 sda
8 1 512000 sda1
8 2 9972736 sda2
8 3 1048576 sda3
8 4 1 sda4
8 5 464640 sda5
8 6 581632 sda6已识别出新分区
11 0 4228096 sr0
253 0 8880128 dm-0
253 1 1048576 dm-1
[root@localhost ~]#
格式化新建的分区mkfs命令
把sda6、sda5格式为ext4
[root@localhost ~]# mkfs.ext4 -L test /dev/sda6
mke2fs 1.42.9 (28-Dec-2013)
Filesystem label=test
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
36400 inodes, 145408 blocks
7270 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=148897792
5 block groups
32768 blocks per group, 32768 fragments per group
7280 inodes per group
Superblock backups stored on blocks:
32768, 98304
Allocating group tables: done
Writing inode tables: done
Creating journal (4096 blocks): done
Writing superblocks and filesystem accounting information: done
也可用 ext系列专用的格式化工具mke2fs
[root@localhost ~]# mke2fs -t ext3 -m 5 -L TEST_sda5 -b 4096 /dev/sda5
mke2fs 1.42.9 (28-Dec-2013)
Filesystem label=TEST_sda5标识符为TEST_sda5
OS type: Linux
Block size=4096 (log=2)block为4096
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
116224 inodes, 116160 blocks
5808 blocks (5.00%) reserved for the super user为管理员预留5%的空间
First data block=0
Maximum filesystem blocks=121634816
4 block groups
32768 blocks per group, 32768 fragments per group
29056 inodes per group
Superblock backups stored on blocks:
32768, 98304
Allocating group tables: done
Writing inode tables: done
Creating journal (4096 blocks): done
Writing superblocks and filesystem accounting information: done
查看所有分区的属性使用blkid
[root@localhost ~]# blkid
/dev/sda1: UUID="050a347a-4a99-4e80-a6b4-a4ed0a47eaa1" TYPE="xfs"
/dev/sda2: UUID="dv2Krn-BlSL-4NBt-yduR-BXax-tChJ-V2YpbM" TYPE="LVM2_member"
/dev/sda5: LABEL="TEST_sda5" UUID="b5b2b12b-236d-4578-845b-a5632ca5eafa" SEC_TYPE="ext2" TYPE="ext3"
/dev/sda6: LABEL="test" UUID="a0a549a2-0aec-4ff6-bce8-f2dfdfa1539e" TYPE="ext4"
/dev/sr0: UUID="2015-12-09-23-14-10-00" LABEL="CentOS 7 x86_64" TYPE="iso9660" PTTYPE="dos"
/dev/mapper/centos-root: UUID="0adba78a-e1e3-4900-87c2-069105c6a1fc" TYPE="xfs"
/dev/mapper/centos-swap: UUID="2228d7dd-b7ed-44fb-9f68-668fc942a542" TYPE="swap"
使用fsck命令检测分区
[root@localhost ~]# fsck.ext3 -frc /dev/sda5 f是强制检测 c是提示测试进度 r进行交互式检测
e2fsck 1.42.9 (28-Dec-2013)
Checking for bad blocks (read-only test): done
TEST_sda5: Updating bad block inode.
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
TEST_sda5: ***** FILE SYSTEM WAS MODIFIED *****
TEST_sda5: 11/116224 files (0.0% non-contiguous), 7837/116160 blocks
[root@localhost ~]#
