Bootstrap Metronic完全响应式管理模板之菜单栏学习笔记

发布时间:2016-07-08 作者:ymnets 来源:转载
这篇文章主要介绍了BootstrapMetronic完全响应式管理模板之菜单栏学习笔记,感兴趣的小伙伴们可以参考一下

针对Bootstrap Metronic菜单栏整理的笔记分享给大家,供大家参考,具体内容如下

1.简介

1) .环境配置

2) .提取页面

3).动态生成菜单(无限级别树)

2.系统环境配置

项目需要程序数据支撑,这里选择MVC5.0+EF6.0[SQLSERVER](不对MVC架构和SQLServer做出解读)

运行环境:VS2013+MVC5.0+EF6.1+SQLServer2012

解决方案名称:AppSolution 项目名称:App.Web(UI层)与App.Models(数据访问层) -直接访问模式

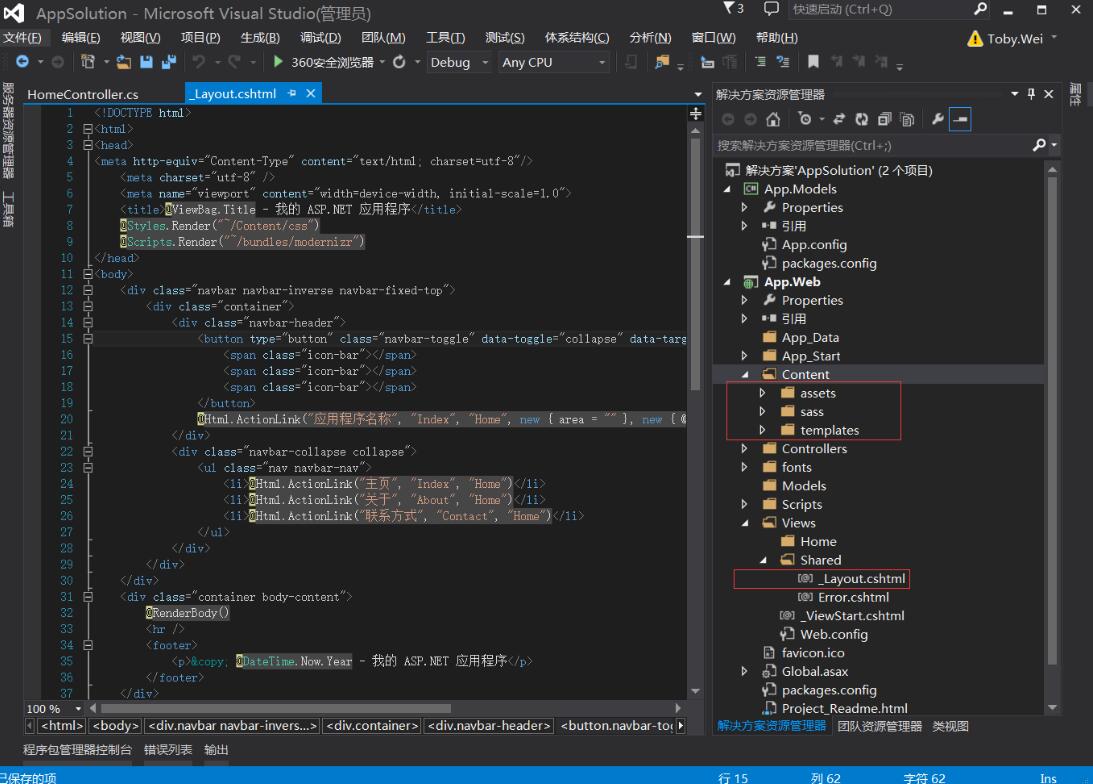

提取theme下的所有文件到MVC的Content,提取admin的index.html到_Layout.cshtml来准备改造

3.创建数据库和表

数据库:AppDataBase

创建以下数据表,并创建AppDB.edmx

USE [AppDataBase]
GO

/****** Object: Table [dbo].[SysModule] Script Date: 2015/9/15 21:03:39 ******/
SET ANSI_NULLS ON
GO

SET QUOTED_IDENTIFIER ON
GO

SET ANSI_PADDING ON
GO

CREATE TABLE [dbo].[SysModule](
 [ID] [varchar](50) NOT NULL, --主键ID
 [Name] [varchar](50) NOT NULL, --菜单名称
 [ParentID] [varchar](50) NULL, --上级ID
 [Url] [varchar](200) NULL, --URL
 [Iconic] [varchar](200) NULL, --图标
 [Sort] [int] NULL,  --排序
 [Enable] [bit] NOT NULL, --是否显示
 [CreateTime] [datetime] NULL, --创建时间
 [IsLast] [bit] NOT NULL --是否最后一项
 CONSTRAINT [PK_SysModule] PRIMARY KEY CLUSTERED
(
 [Id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]

GO

SET ANSI_PADDING OFF
GO

ALTER TABLE [dbo].[SysModule] WITH NOCHECK ADD CONSTRAINT [FK_SysModule_SysModule] FOREIGN KEY([ParentID])
REFERENCES [dbo].[SysModule] ([Id])
GO

ALTER TABLE [dbo].[SysModule] NOCHECK CONSTRAINT [FK_SysModule_SysModule]
GO

人为造点数据

INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('0','root','root','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('1','一级菜单01','0','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('11','二级菜单01-01','1','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('111','三级菜单01-01-01','11','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('112','三级菜单01-01-02','11','Index','icon-settings',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('12','二级菜单01-02','1','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('13','二级菜单01-03','1','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('2','一级菜单02','0','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('21','二级菜单02-01','2','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('211','三级菜单02-01-01','5','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('212','三级菜单02-01-02','5','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('22','二级菜单02-02','2','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('23','二级菜单02-03','2','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('3','一级菜单03','0','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('31','二级菜单03-01','3','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('311','三级菜单03-01-01','31','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('312','三级菜单03-01-02','31','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('32','二级菜单03-02','3','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('33','二级菜单03-03','3','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('4','一级菜单04','0','Index','icon-settings',NULL,0,NULL,0)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('41','二级菜单04-01','4','Index','icon-link',NULL,0,NULL,1)
INSERT INTO [SysModule] ([ID],[Name],[ParentID],[Url],[Iconic],[Sort],[Enable],[CreateTime],[IsLast]) values ('42','二级菜单04-02','4','Index','icon-link',NULL,0,NULL,1)

(22 行受影响)

4.提取页面重要布局

我们是后台系统所以我们保留top. left menu和foot3个部分

我已经提取好了,请复制





 Metronic | 版面展示

































版面展示 reports & statistics

@RenderBody()

再次提取菜单代码

  • Multi Level Menu
  • 大约在466行-529行

    分析上面html可以看出,li包含ul循环调用。所以我们用递归读取菜单

    5.拼接菜单栏

    创建Home视图Index.cshtml并应用_Layout.cshtml

    Bootstrap Metronic并菜单没有提供Ajax模式,我们只能读取数据拼接HTML

    过程:读取数据表数据递归调用

    using App.Models;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Web;
    using System.Web.Mvc;
    using System.Text;
    namespace App.Web.Controllers
    {
     public class HomeController : Controller
     {
     AppDBContainer db = new AppDBContainer();
     public ActionResult Index()
     {
     IQueryable menus = db.SysModule.AsQueryable().Where(a=>a.ParentID=="0");
     StringBuilder sb = new StringBuilder();
     bool firstFlag = true;//第一个默认展开
     GetChildMenus(ref sb, menus, firstFlag);//二级菜单
     ViewBag.Menus = sb.ToString();
     return View();
     }
     //递归调用
     public void GetChildMenus(ref StringBuilder sb, IQueryable menus,bool firstFlag)//二级以上菜单
     {
     int count = 0;
     if(!firstFlag)
     sb.Append("");

     }
     }
    }


    去掉提取的li替换成@Html.Raw(ViewBag.Menus)

    6.总结

    前端这种东西最考验人的耐心,不信你自己拼接一下

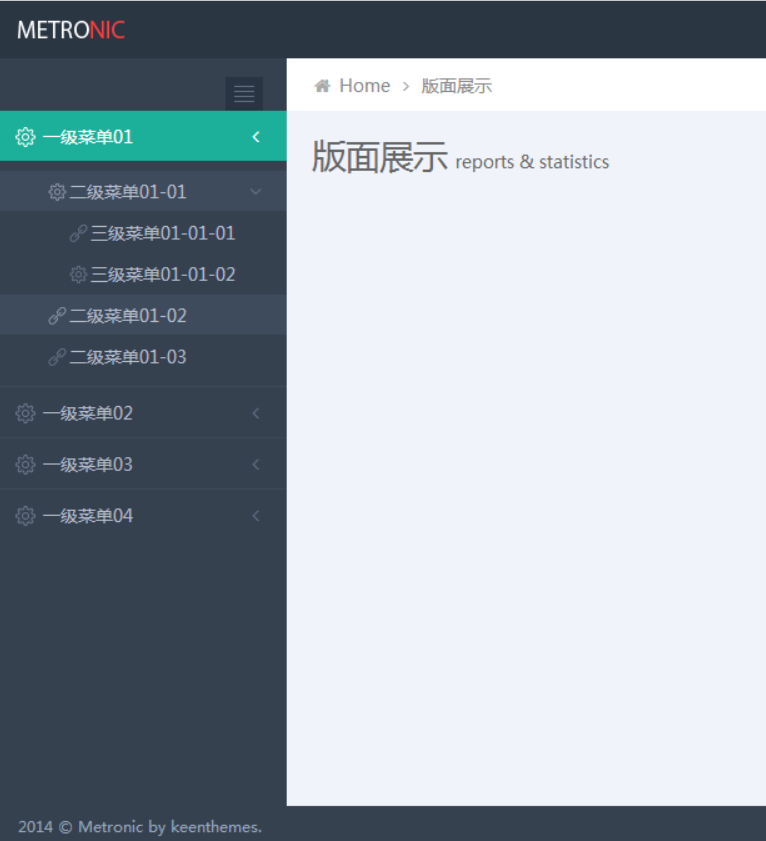

    最后效果

    作者:YmNets

    出处:http://ymnets.cnblogs.com/
